Swimming pool cleaners
|
|
|
|
|
Automatic cleaners from the Squirrel range are suitable for both private and public swimming pools. Each one is equipped with 3 engines, 2 large filter bags (4 for the Twin model) of 180 microns (80 or 50 microns available to order) and a remote control, which is supplied with the cleaner or can be ordered separately.
YOYO - Automatic cleaner for private pools - The basic model
This reliable, cost-effective and easy to use cleaner has a completely automatic function and is capable of adapting to all pool types, without having to specify a cleaning programme in advance. In just 10 seconds it is able to gauge the main characteristics of the pool and select the right programme for the correct length of time to achieve a perfect clean of the bottom of the pool. Two versions are available: one with wall climbing functionality and one without.
Features:
- 3 motors of 24 Voltage: 2 motors for traction and 1 for the suction pump with a wide range (approx. 16m³).
- Its horizontal "butterfly" movements avoid the cable becoming tangled.
- Climbs walls of up to 1m / 1.20m (electronic limits), for immaculate cleaning of angles (corners) and the bottom of the pool.
- It is equipped with a control system that protects the motor from breakdown or breakage.
- It will sense any obstacles and change direction.
- It is capable of identifying and indicating any possible faults, thereby enabling fast and effective telephone assistance.
- It has a separate floating cable of 16m in length for pools up to 15 x 7m.
- The electric cover has a practical handle for easy transportation.
- A suitable technical remote control can carry out checks, regulations and diagnostics.
IDEA RADIO - Automatic cleaner for private pools
Idea Radio is more comprehensive because of its surface area sensor, which enables it to climb walls of any height, and its remote control, which can either be programmed or controlled manually inside the pool. This automatic cleaner has the same Self-learning feature as the YoYo model.
The cleaner’s memory contains a series of pre-defined programmes prepared according to the dimensions of the pool. It is possible to programme the wall climbs so as to achieve a more customised use of the cleaner, and to use the manual function for optimal cleaning of those hard to reach areas.
Features:
The cleaner:
- 3 motors of 12 Voltage: 2 motors for traction and 1 for the suction pump.
- 20m electric cable with floats.
Wall mounted electrical switchboard:
- Protection IP 65
- Practical handle for easy transportation
- « self-learning » guarantees all of the cleaner’s functions.
- Regulation and diagnostics by a technician through appropriate communication unit.
Remote control (can be purchased separately)
- Enables complete control of the device
- Simple and manageable.
NETTUNO PLUS - The battery-operated cleaner
Nettuno Plus is the first automatic cleaner in the world to be operated using NINh batteries. It is protected by an exclusive European patent from International Caratti and can independently clean pools of up to 20 x 10 m. This device is particularly effective at cleaning pools with pillars or other obstacles. The battery life is 4 hours. It has both an automatic and manual function.
Features:
The cleaner:
- 3 motors of 24 Voltage
- 3.5m cable connected to the shuttle
The remote control:
- Liquid crystal console
- Allows manual programming from a distance
- Maximum coverage of approx. 30 metres
Floating shuttle:
- 2 batteries of 12 +12 Voltage
- Radio receiver and electronic controls
- “pudding” floats
The trolley and shuttle are in stainless steel. The battery charger, from the range, stops automatically once the batteries are charged.
EVOLUTION – Automatic pool cleaner for semi-public pools
Evolution is similar to the other cleaners in terms of functionality and usage, but is equipped with powerful traction motors and with pumps that are capable of carrying out heavier cleaning jobs. It has been specifically designed for semi-public and public pools where stringent levels of hygiene are required. This cleaner can operate both automatically and manually.
Features:
The cleaner:
- 3 motors of 24 Voltage, 2 motors for traction and 1 for the suction pump.
- Floating cable of 30m
The remote control:
- Liquid crystal console
- Allows manual programming from a distance
- 15m cable connected to the electrical switchboard
- Provides ongoing information on the cleaner’s performance and indicates any possible faults.
Wall-mounted electrical switchboard:
- Contains general power supply
- Must be mounted within approx. 3.5m of the pool.
- Protection IP 65
TWIN - Automatic cleaner for public pools
The Twin has the same features as the Evolution but because of its dimensions, its double motor pump and 4 filter bags, is able to quickly and more effectively clean the bottoms of pools. This device is specifically designed for public pools of up to 25 x 12.5m. The pump and traction motors have been designed to handle much heavier cleaning jobs than our other automatic cleaners. This cleaner operates both in automatic and manual mode, enables the user to select the programme and cleaning cycle required, or to manually control it in hard to access areas for optimal cleaning.
Features:
The cleaner:
- 2 motors of 24 Voltage with completely separate traction.
- 2 suction pumps of 24 Voltage with a total range of approx. 32 m3/h.
- Floating cable of 30m
The remote control:
- Liquid crystal console
- Allows manual programming and control from a distance
- 15m cable connected to the electrical switchboard
- Provides ongoing information on the cleaner’s performance and indicates any possible faults.
Wall-mounted electrical switchboard:
- Contains general power supply
- Must be mounted within approx. 3.5m of the pool.
|
|
|
|
|
International Caratti
Since its beginnings, the goal of International Caratti has always been very clear: to face each problem related to the construction of public and private swimming pools. That is the reason why the electronic robot Squirrel was born in 1991, the very first one in the swimming pool world to be equipped with 3 engines, a remote control and sensors for surface calculation.
Today, after almost 30 years of studies, research, development and involvement, the current range of cleaning robots covers all categories of the swimming pools market, from above-ground to buried swimming pools and public structures.
Squirrel is innovation: the heart of the robots always consisted of 3 engines, 1 for the suction and 2 for traction, allowing any movement independently of the position in the swimming pool. Certain models are equipped with a remote control for the areas with residues of dirt.
Squirrel is quality: our suppliers are rigorously selected and our manufacturing processes are advanced, in order to guarantee quality products and great satisfaction.
Squirrel is technology: Neptune is the first robot in the world supplied with batteries, remote-controlled and patented since 2000.
Squirrel is economic: all the robots are designed and manufactured by International Caratti, which allows a reduced purchase price and extremely low maintenance costs.

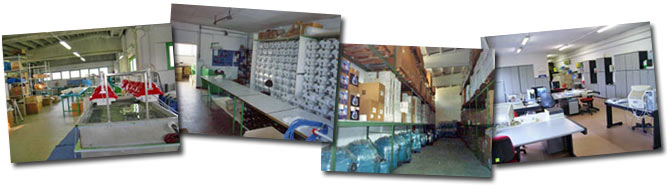

Our various services
Production
Assembly workshop of the Squirrel robots. All the robots of the Squirrel range are manufactured, assembled and tested in this service.
Laboratory and research
Our development and repair laboratories constantly carry out high-end research in order to improve the operation of the robots.
Warehouse
Two halls are dedicated to the storage of our products intended for sale.
Offices
Our administrative, technical and commercial services are always available for our customers.
|
|
|
|
|
|
|
|
