A QUICK, SIMPLE AND ROBUST CONCEPT

The Mondial Piscine concept is based on a system using polypropylene panels (filled with concrete). Developed by our design team, it is one of the only construction processes on the market to have received technical approval from the French building organisation CSTB (Centre Scientifique des Techniques du Bâtiment). This enables us to offer a ten year manufacturer’s warranty on our products. We also conform to the BAEL standard.

A patented process and 10 year warranty from the manufacturer

Our panels measure 1.20m or 1.50m in height by 1m width and 15cm in thickness, and weigh only 14kg. They are injected on a press of 1700 tons. They are completely modular, enabling you to create both deep and flat-bottomed pools.

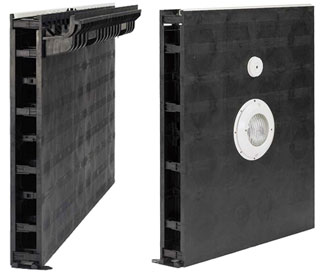

Mondial Piscines panels

A system of vertical reinforcement on a grid frame, welded to the bottom of the pool, and a horizontal reinforcement at the top, makes this a very solid, homogenous structure. An excavation of 20cm around the pool is sufficient.

Assembly of the panels is facilitated by a specially developed sliding system. Mounted on self-aligned and height-adjustable blocks means the pool is always perfectly level.

A system of quick-to-install overflows allows you to create a peripheral double wall-tie and to attach the edges before the filling stage. The sealant parts are factory-assembled and are supplied mounted on the panels. The steps are modular and built in reinforced concrete. The whole pool structure is therefore made entirely in one piece.



A WIDE AND INNOVATIVE RANGE OF MADE-TO-MEASURE POOLS

The vast Mondial Piscine pool range is completely adaptable. Mondial Piscine is constantly innovating and is now proud to present its new angled pool steps, which, because of the width of the first step, provide greater comfort, aesthetics and grace.

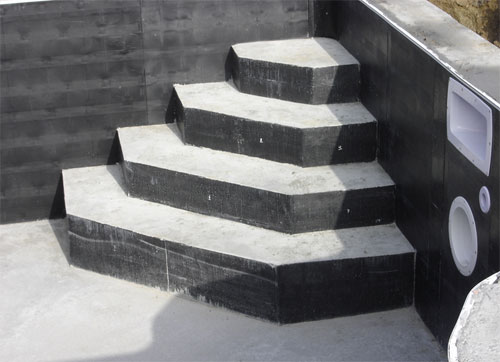

The new angled pool steps

Another exclusive product from Mondial Piscine is its automatic pool cover, the Incognit’ô. Cleverly hidden underneath the first step, it is completely invisible and therefore not an eye-sore against the beauty of the pool. The first step serves as an immersed pool deck and is made of detachable grating that allows the automatic cover to unfold.

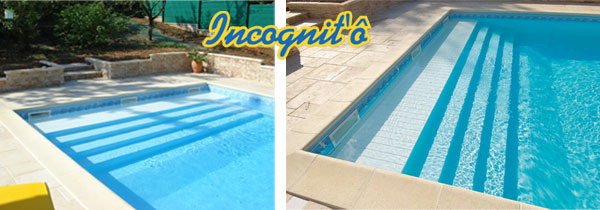

The Incognit’ô automatic pool cover

Finally, Mondial Piscine is introducing the mirror pool, the Miroird’ô. This innovative and advanced top-of-the-range model has been specifically designed using the Mondial Piscine concept and without the need for any brickwork whatsoever. Simple, reliable and quick to assemble.

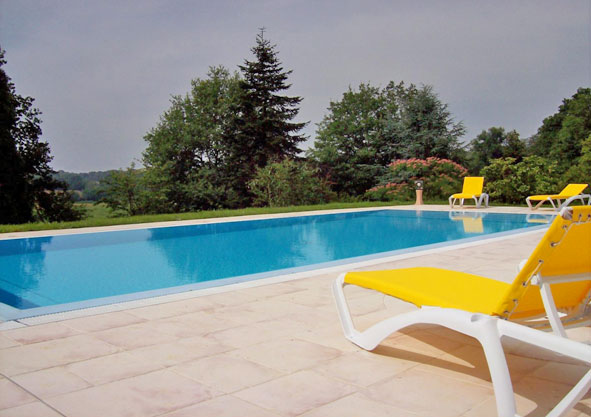

Miroird’ô, the mirror pool
